Machines & Equipment

Diamond Products Division

The Diamond Products Division dedicates substantial resources to research and development to deliver top-tier tools to the market. This division also actively protects its intellectual property rights. The products that we manufacture may be protected by the specified U.S. and foreign patents, pending applications, and additional patents or applications that are not yet listed.

View Diamond Products Page
View Capabilities Page

MU-500VA-L

  • Machining volume: Ø 27.56" x 19.69"
  • Table size: Ø 19.685"
  • Spindle speed: 8000 RPM
  • Spindle power: 15 HP
  • Magazine Capacity: 32/ HSK 63

MU-500V-II

  • Machining volume: Ø 27.56" x 19.69"
  • Table size: Ø 19.685"
  • Spindle speed: 15000 RPM
  • Spindle power: 15 HP
  • Magazine Capacity: Matrix (78 modular) / Big Plus

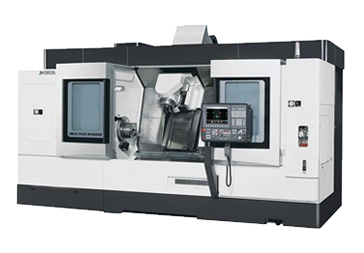

Multus B400-W (Multus 1)

  • Max turning diameter: Ø 27.95
  • Max turning length: 78.74"
  • Milling spindle: 15 HP/6000 RPM
  • B-axis: 225°
  • Magazine Capacity: 80/ C6 Capto
  • Steady rest: Ø 3.54" - Ø 12.99"
  • Y-axis: 8.0"

Multus B400-W (Multus 2)

  • Max turning diameter: Ø 27.95
  • Max turning length: 59.055"
  • Milling spindle: 15 HP/10,000 RPM
  • B-axis: 225°
  • Magazine Capacity: 40/ C6 Capto
  • Y-axis: 8.0"

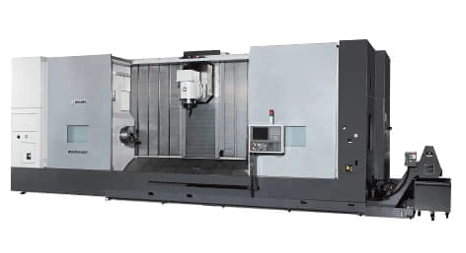

Multus B750-W (Multus 3)

  • Max turning diameter: Ø 41.34
  • Max turning length: 157.48"
  • Milling spindle: 30 HP/5000 RPM
  • B-axis: 225°
  • Magazine Capacity: 80/ C8 Capto
  • Steady rest: Ø 8.5" - Ø 21.00"
  • Y-axis: 25.59"

Multus B750-W (Multus 4)

  • Max turning diameter: Ø 41.34
  • Max turning length: 157.48"
  • Milling spindle: 30 HP/5000 RPM
  • B-axis: 225°
  • Magazine Capacity: 80/ C8 Capto
  • Steady rest: Ø 8.5" - Ø 21.00"
  • Y-axis: 25.59"

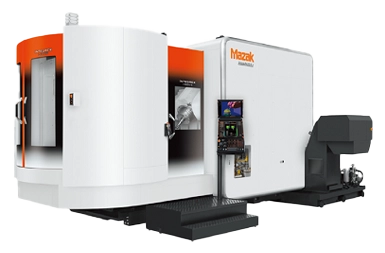

Mazak Integrex i-630V/6

  • Machine Volume: 41.34" dia X 39.37"
  • Table Size: 31.4"
  • Milling Spindle: 60hp / 10000 RPM
  • B-axis: 160°
  • Magazine Capacity: 43/ C8 Capto
  • Pallet Changer: 2
  • Turning Spindle: 660 RPM
  • Feed Axis: X-axis=66.10";y-axis=41.34";Z-axis=41.34

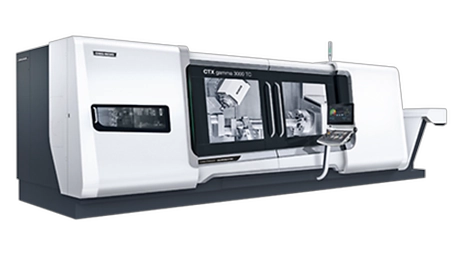

DMG MOri CTX Gamma 3000

  • Max turning diameter: Ø 27.60”
  • Max turning length: 120.10”
  • Milling spindle: 25 HP/8000 RPM
  • B-axis: 240°
  • Magazine Capacity: 80/ C8 Capto
  • Steady rest: Ø .625” - Ø 18.00”
  • Y-axis: 16.5”
